Bike Data Logger (BDL):The BDL is a complete acquisition system for mountain bike
Paray - Bike Data Logger on pinkbike.com
·
2 displacement sensors for
suspension
·
2 speed sensors: front
wheel rear wheel
·
3 axis accel sensors (G
force): front, vertical et lateral
·

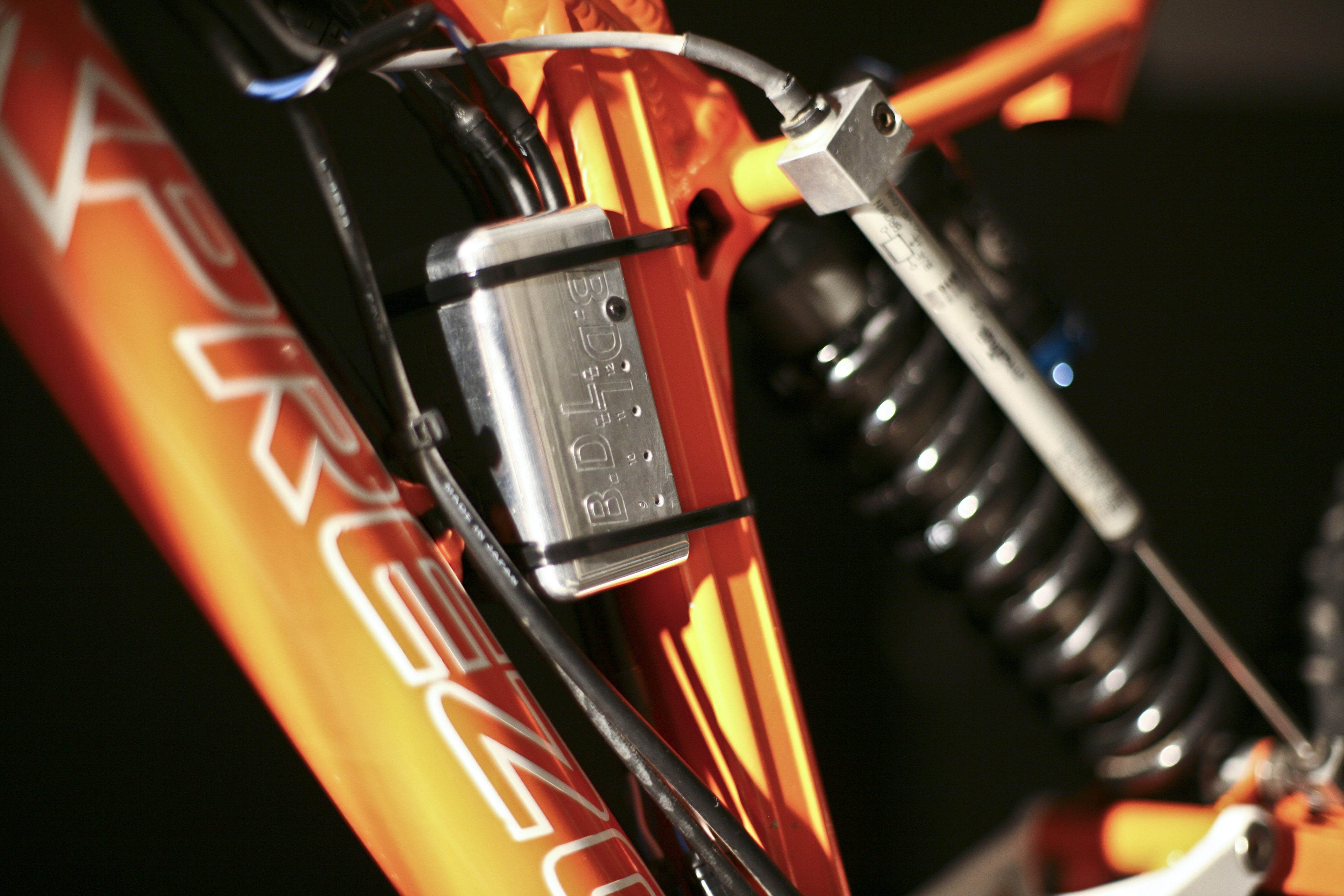

Recording unit, can hold
more than one hour of data
·
Set of brackets and
mounting hardware to attach sensors and recording unit to a bike
·

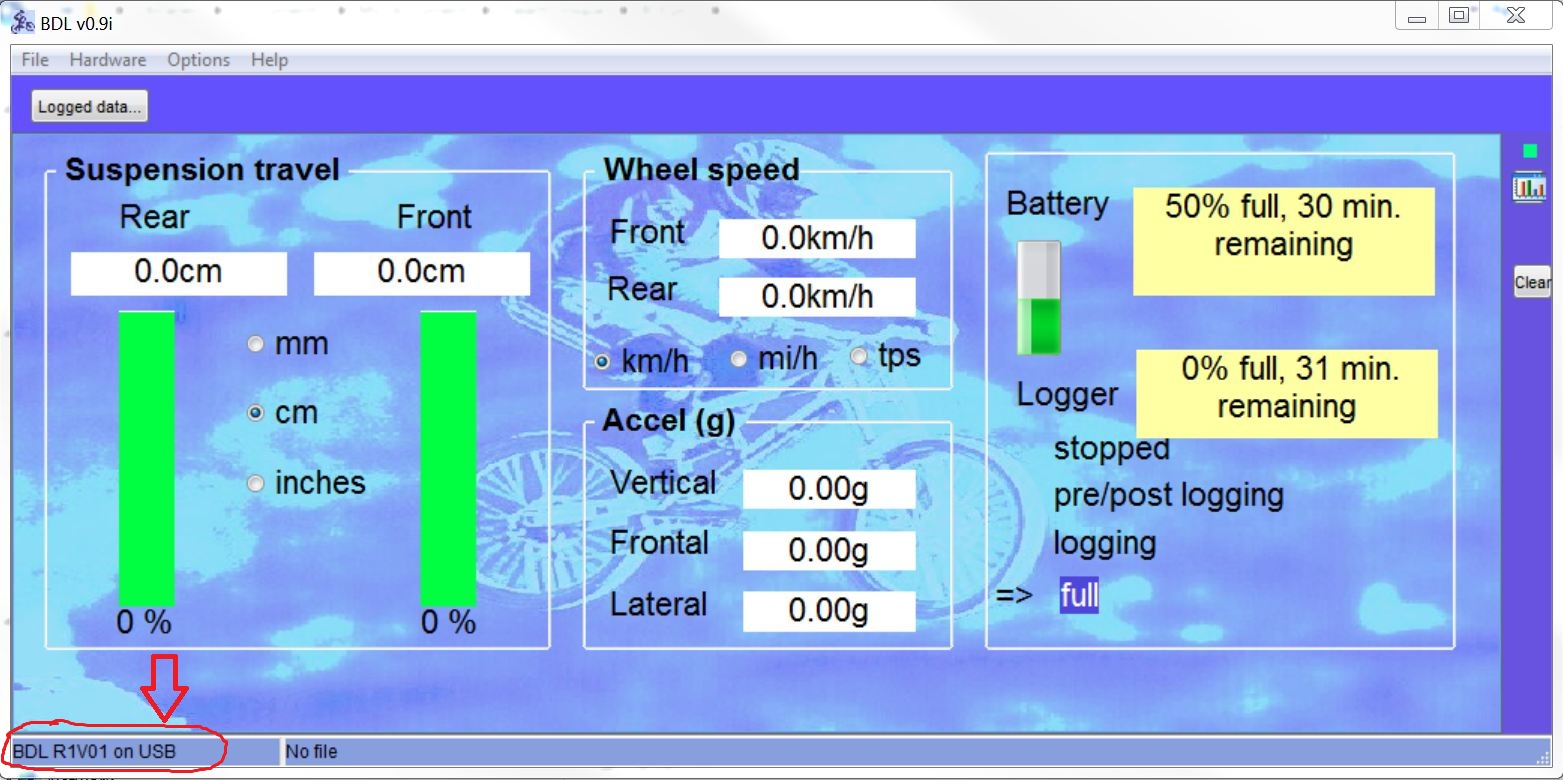

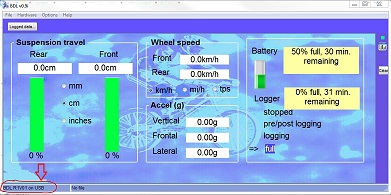

BDLpro: Windows software
that connects and monitors live data from the recording unit.
Used to adjust and validate that everything works properly.
Also used to download logged data to your laptop. Download by clicking here.
·
BDLview: Windows software
for data analysis. View logged
data graphically and numerically, with bottoming and wheel lock highlights. Download here.
The
BDL could
help you
fine tune your suspension: static
and dynamic sag, damping-rebound, etc.;
improve your rider skills: learn
to recognize and avoid wheel locks, check for best body position and weight
transfer in banked turn and jumps;
compare your performance from run
to run.

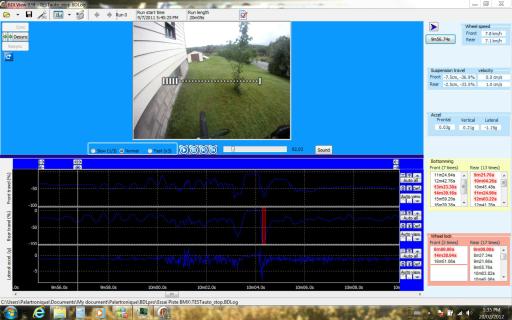

An interesting feature of the system
is the possibility to view your data in relation to a video of your run.
If you have a video recording (eg: with a helmet cam), your graphical
data can be viewed and replayed alongside the video in
BDLView.
Analysis
of a run of data can yield useful insight into matters such as possible
suspension improvements and rider technique deficiencies.
You don’t need to be a data analysis expert to be able to get useful
information from your recordings, though practice does help in recognizing
useful patterns.
If
you are interested in the Paray's BDL and want to know more, click on the
links below to access to the full documents.
***
Does the BDL will easily fit on my Bike?
Read the installation instructions, it will give you a good idea.
Not sure?
Email us at paray@parayelectro.com
Datasheet
Quick Start Guide
Installation Instructions
Software suite download
Coming soon: Set
of sheet metal stainless steel brackets, not as sweet as the cnc aluminum
ones, but easily modified by the end user. This kit will include brackets
for single crown forks, plus brackets to attach the rear suspension travel
sensor to seat post and swingarm. This makes it easier for bikes where
it is impossible to attach the rear sensor to the shock pivot mounting
points.
Price:
Full kit: CDN$2500 plus shipping. You get: BDL Module, all
sensors listed above, cnc machined aluminum brackets, battery charger, the
two Windows softwares listed below and
3 hours of support/formation.
*** It is possible to buy all
items separately, send an E-Mail for quotation at
paray@parayelectro.com
How to order:
Just send an
E-Mail to
paray@parayelectro.com
to get a
quotation or order. Also use that email for any question about our BDL
product.
